UVShield UV Pool Treatment

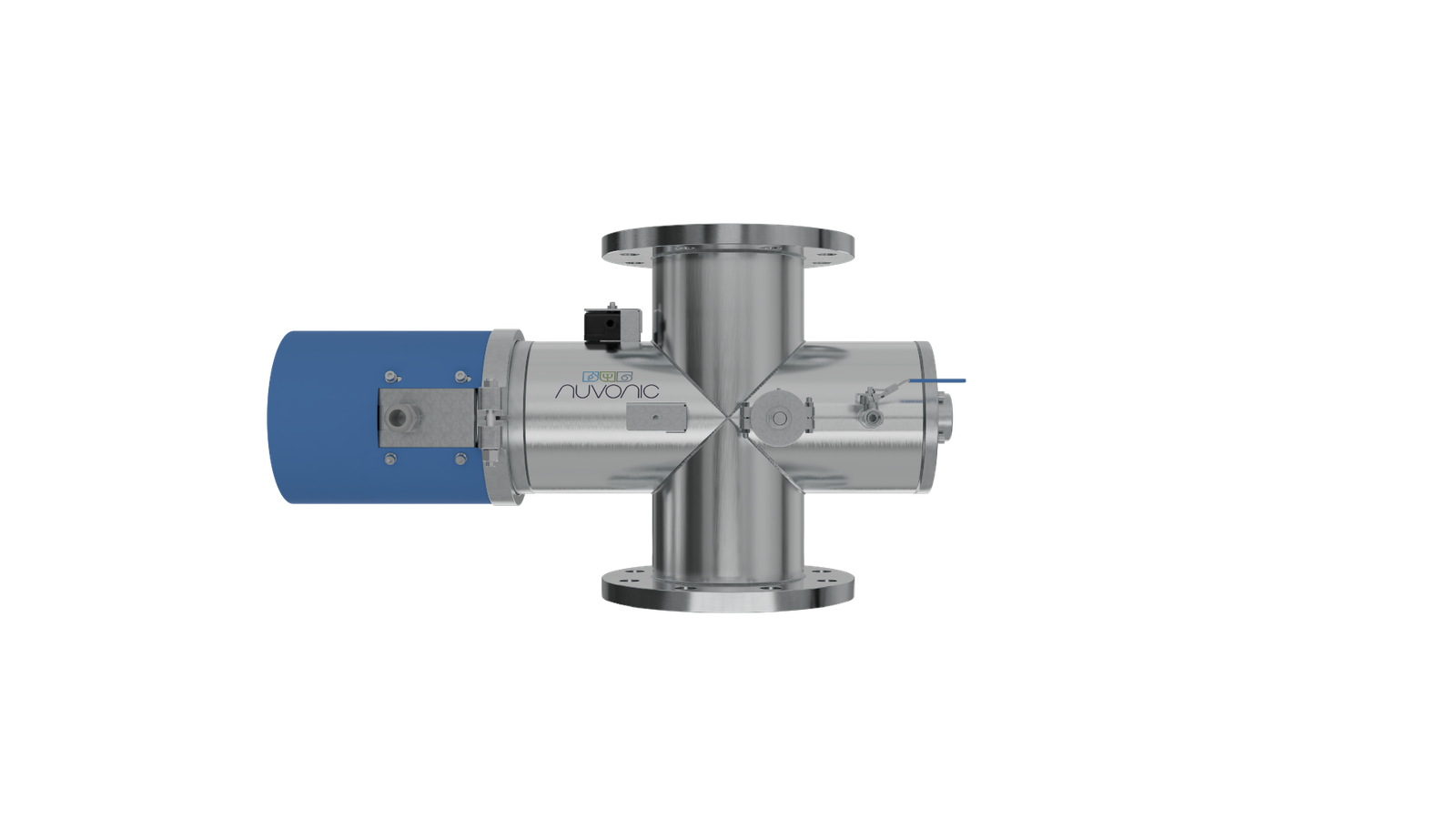

    The Nuvonic UVShield is an advanced medium-pressure UV pool treatment system designed for commercial and residential aquatic venues. Engineered with a compact footprint to fit tight plant rooms, it features power-saving variable control, robust 316L stainless steel construction, and an intuitive 7-inch touchscreen. Includes built-in safety interlocks, sacrificial anodes, and integrated wiper systems for low-maintenance, reliable disinfection and chloramine reduction.

    Category: Brand:

      Product Overview

      • Product Name: UVShield UV Pool Treatment System
      • Brand / Manufacturer: Nuvonic
      • Application: Commercial and residential aquatic venues / pool treatment
      • Key Features: Compact and flexible design for tight plant rooms, power-saving efficiency, built-in safety features, and integrated wiper/strainer.

      Key Specifications

      Feature Specification Details
      Lamp Type
      Medium Pressure UV Lamps
      Lamp Life
      9,000 Hours
      Max Dimming
      30% to 70% of max power (varies by model)
      Chamber Material
      316L Stainless Steel
      Internal Finish
      $<0.8\ \mu\text{m}$
      Chamber IP Rating
      IP55
      Working Fluid Temp.
      5°C to 45°C
      Max Operating Pressure
      6 bar
      Connection Type
      Flange EN 1092-1 PN10
      Seals
      EPDM

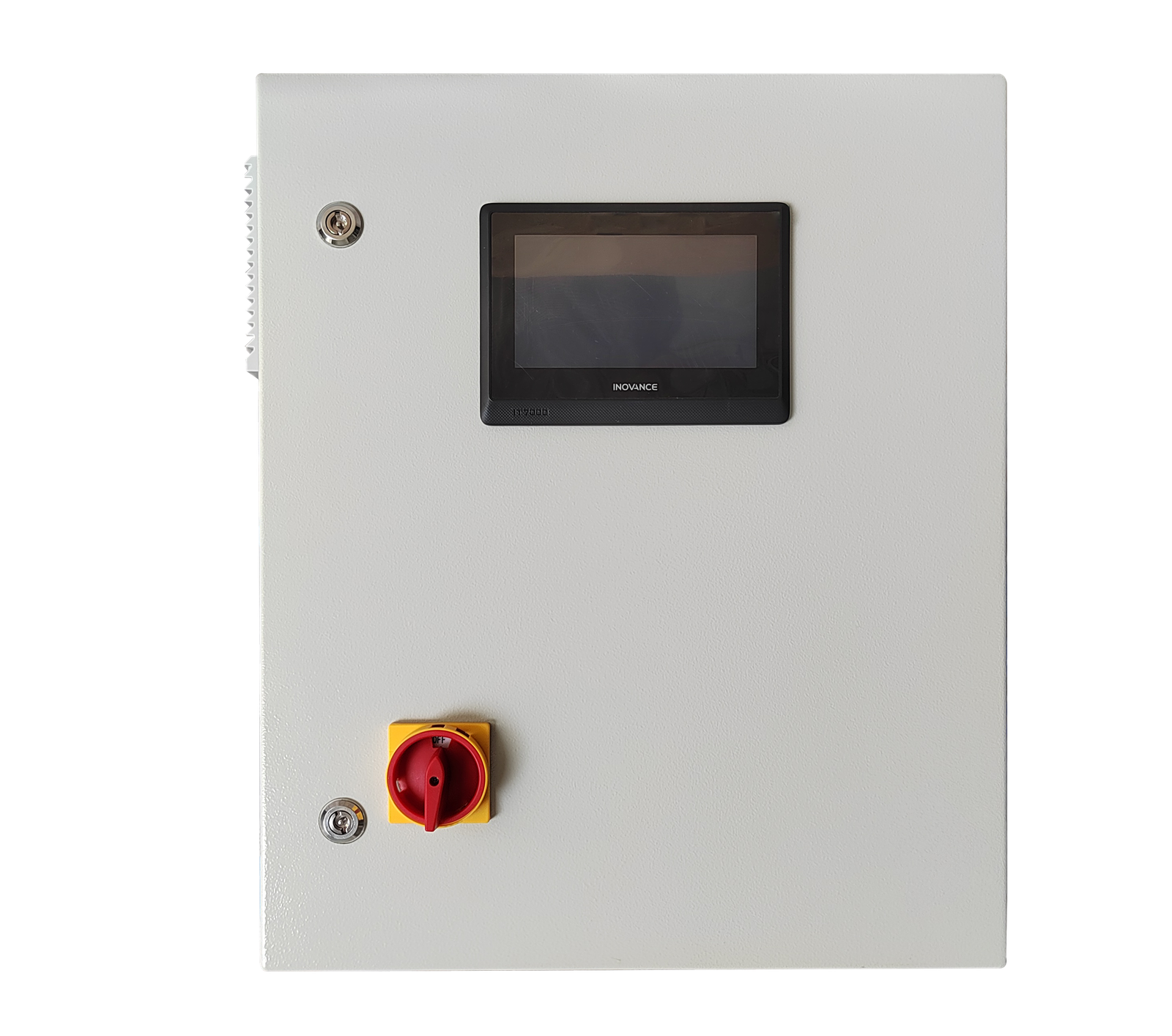

      Cabinet Material
      Coated carbon steel (RAL 7035)
      Cabinet IP Rating
      IP54

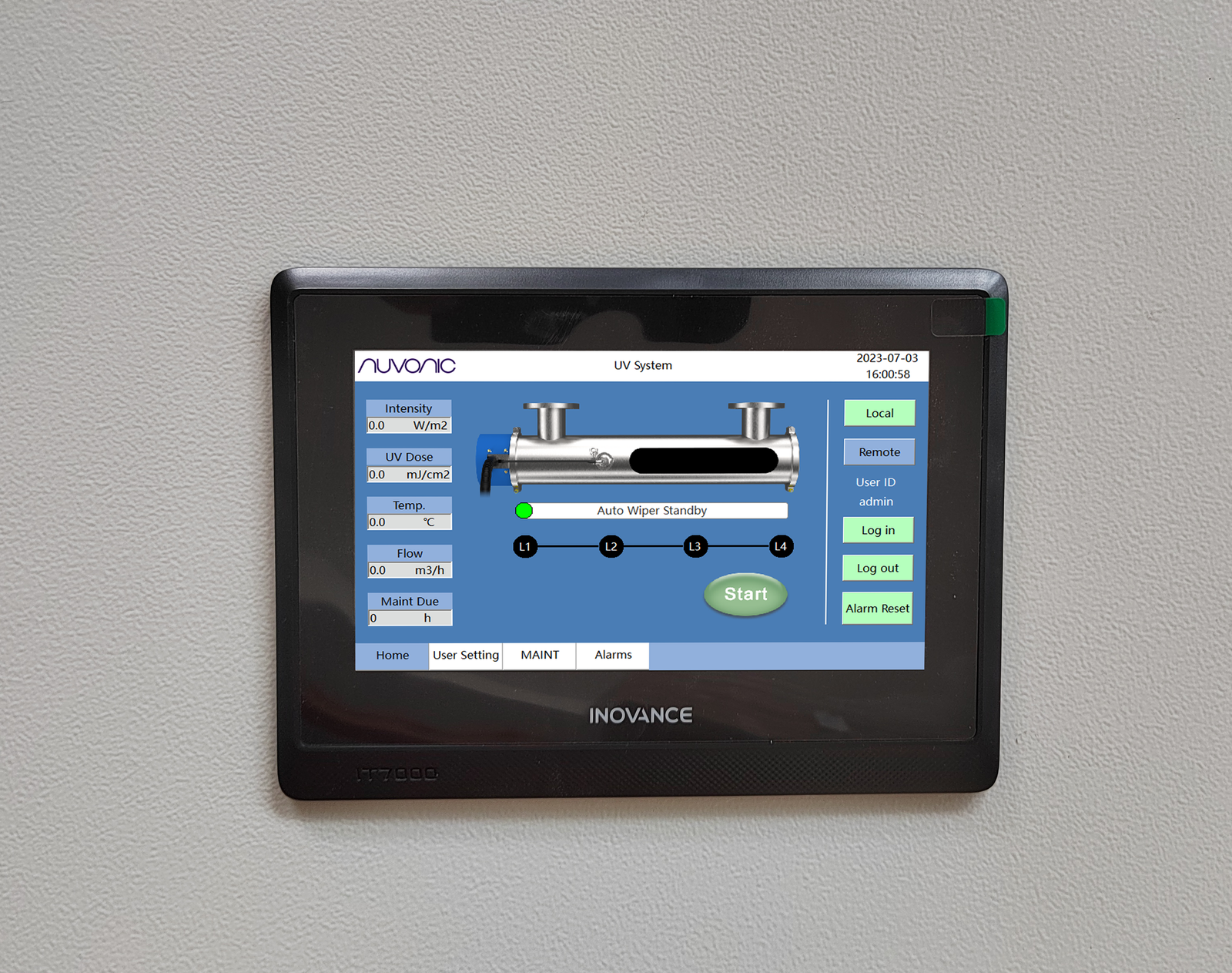

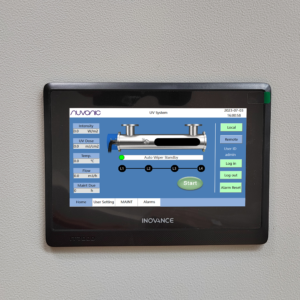

      Controls & Display
      7-inch Touchscreen Interface
      Certifications
      CE, UKCA

      Standard Components Included

      • Dry Sensor (UV Monitor)
      • Temperature Sensor
      • Sacrificial Anode
      • Manual/Automatic Wiper & Strainer
      • Vent & Drain Ports (1/4″ BSPT sockets)
      • Door Interlock & Water Leakage Sensor

      Model Performance & Dimensions Matrix

      Model Code No. of Lamps Connection Size Secondary Flow (m3/h) Chloramine Reduction (m3/h) Chamber Dims (A×B×C mm) Cabinet Dims (K×L×M mm)
      S2-101 1 2″ (DN 50) 21.6 22.9 $590 \times 183 \times 370$ $300 \times 570 \times 750$
      S3-101 1 3″ (DN 80) 35.3 50.6 $590 \times 183 \times 380$ $300 \times 570 \times 750$
      S4-151 1 4″ (DN 100) 72.0 87.5 $720 \times 242 \times 380$ $300 \times 570 \times 750$
      S6-201 1 6″ (DN 150) 132.4 173.2 $720 \times 242 \times 440$ $300 \times 570 \times 750$
      S6-301 1 6″ (DN 150) 162.0 199.0 $910 \times 297 \times 440$ $300 \times 570 \times 750$
      S8-301 1 8″ (DN 200) 198.6 287.0 $910 \times 297 \times 440$ $300 \times 570 \times 750$
      S8-202 2 8″ (DN 200) 329.0 345.2 $780 \times 242 \times 440$ $320 \times 670 \times 960$
      S10-302 2 10″ (DN 250) 507.0 544.6 $955 \times 300 \times 520$ $320 \times 670 \times 960$
      S12-303 3 12″ (DN 300) 773.5 773.5 $955 \times 300 \times 520$ $320 \times 700 \times 1100$
      S14-303 3 14″ (DN 350) 852.0 935.3 $955 \times 295 \times 545$ $320 \times 700 \times 1100$
