RYAN 12″ JR. Sod Cutter
RYAN 12″ JR. Sod Cutter
Engine: 4‐Cycle Honda GX160
Recoil starts
on/off switch
low‐oil alert
Displacement .9.9 cu in. (163 cc)
Cutting Width: 12 inch
Cutting Thickness: Adjustable up to 2.5 in. (64 mm)
Drive: V‐belt engine to gear case
Transmission has separate dog clutches to engage cutting blade and traction drive
Drive Wheel (2) 8 in. (203 mm) diameter
Rear Tire: 9 x 3.50 ‐ 4 with sealed ball bearings
Oil splash in gear case
Speed: Up to 135 ft/min (41 m/min)
Made in U.S.A.
Warranty: 12 Months limited warranty against any manufacturing defects.
The Ryan® Jr. Sod Cutter has been the gold standard in the golf, rental and commercial industries for more than 50 years.
The improved Jr. Sod Cutter sports a host of new features, including reduced hand/arm vibration, cut by a remarkable 75% for more comfortable operation. A new pneumatic rear castor wheel with lockout allows curved landscape cutting with unmatched precision. A true workhorse, the Jr. Sod Cutter packs the speed, convenience and reliability you’ve come to expect from Ryan.
Features:

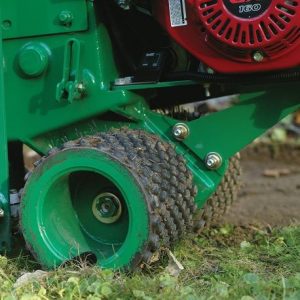

Semi-pneumatic swiveling rear wheel makes it easy to maneuver tightly around turns and cut closely along contoured landscape edges.

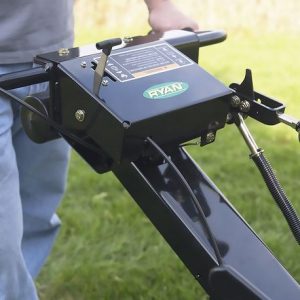

Rubber isolation mount absorbs much of the machine’s vibration before it ever reaches your hands.
Easy depth and blade angle adjustment allow precise cutting in a wide variety of landscape contours and soil conditions.
ADDITIONAL DETAILS
Engine: 4‐Cycle Honda GX160
Recoil starts
on/off switch
low‐oil alert
Displacement .9.9 cu in. (163 cc)
Cutting Width: 12 inch
Cutting Thickness: Adjustable up to 2.5 in. (64 mm)
Drive: V‐belt engine to gear case
Transmission has separate dog clutches to engage cutting blade and traction drive
Drive Wheel (2) 8 in. (203 mm) diameter
Rear Tire: 9 x 3.50 ‐ 4 with sealed ball bearings
Oil splash in gear case
Speed: Up to 135 ft/min (41 m/min)
Made in U.S.A.
Warranty: 12 Months limited warranty against any manufacturing defects.
